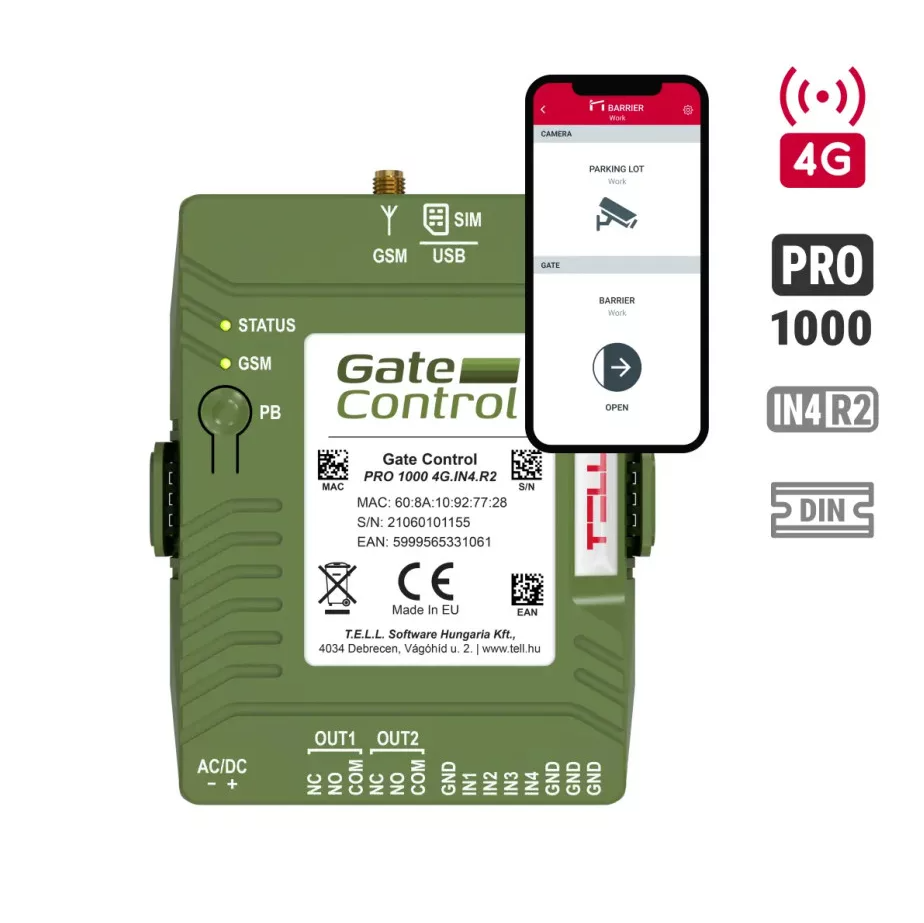

Gate Control PRO 1000 DIN rail - 4G.IN4.R2

63.900 kr
Vörunúmer: TELL-GCP1000-4G
Hlíðar/Slá/Hurða GSM opnunarbúnað Gate Control PRO 1000 DIN rail - 4G.IN4.R2
 Aftur í: Stýrieiningar

Opnunarbúnað til að stjórna rennihlíðum, slám, hurðum og fleiru með GSM appi.

1000 nótendur. Hægt að stjórna aðgangi fyrir hvern og einn ur fjarlægð. Stilla aðgangi fyrir mismunandi nótendur á mismunandi tíma dags.



Main features:

  • 4G/2G communication
  • Control of electric gates and barriers via mobile phone, mobile application or via GSM call
  • Option for controlling two different gates or barriers with the same device
  • 1000-user variant
  • Notification sending if the gate or barrier fails to open or close

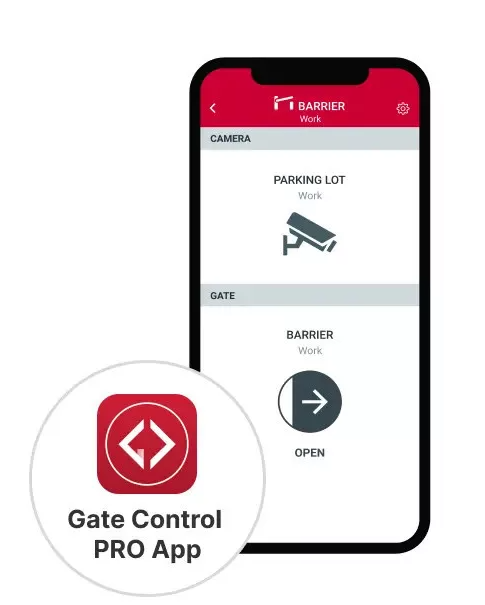

  • Showing the open/closed status of the gates or barriers in the mobile application
  • Status reporting of 4 contact inputs via e-mail, SMS or call
  • Transmits doorbell activity to mobile phone
  • IP camera support, makes camera pictures available in the mobile application
  • Configurable user permissions and entry periods
  • Configurable scheduled controls
  • Event log and report sending in e-mail
  • Supported operating system: Windows 10
  • DIN rail compatible



Identifiers
Additional product versions:
4G.IN4.R2
Technical specification
Transmission channel:
4G/VoLTE/2G/GSM
Frequency band:
GSM/GPRS/EDGE: 900/1800 MHz, LTE/FDD: B1/B3/B5/B7/B8/B20
Operating temperature:
-20 ºC - +70 ºC
Supply voltage:
12-30V DC or 12-24V AC
Current consumption (maximum):
500 mA @ 12V DC
Current consumption (nominal):
130 mA @ 12V DC
Casing:
Plastic
Terminal connector design:
Detachable
Dimensions:
88.4x119x23.1
Package size:
180x131x55 mm
Product weight:
200 g
Weight (with package):
380 g
Inputs
Contact inputs:
4
Configurable inputs (NO/NC):
Yes
Adjustable input sensitivity:
Yes
Outputs
Relay outputs:
2 (NO/NC/COM)
Output control through free GSM call:
Yes
Notifications
GSM voice call:
Yes
SMS sending:
Yes
E-mail sending:
Yes
Push notification:
Yes
Users
Maximal number of users:
1 000
User phone numbers for forwarding incoming SMS messages:
1
User phone numbers for reporting:
4
User phone numbers for output control:
1000 / Unlimited
Possibility to allow control with hidden phone number:
Yes
Control with caller identification:
Yes
Programming
Programming method:
USB-C / IP
Programming software:
Yes
Other functions
Built-in internal clock:
Yes
Security password:
Yes
Event logs / Number of stored events:
Yes / 1000
Caller identification:
Yes
Mobile application:
Yes
Individual email sending with predefinable message:
Yes
Individual SMS sending to user phone numbers with predefinable message:
Yes
Periodic test report:
Yes
IP camera support:
Yes
